Bulk freeze drying: Scaling up lyophilization for large scale production

While freeze drying in vials is common for small-scale applications, bulk freeze-drying is essential for large scale production.

This method involves processing large quantities of material in trays, making it ideal for industries requiring high volume output.

The bulk freeze drying process

Bulk freeze drying involves several key steps, each critical to ensuring the quality and stability of the final product.

Here’s an overview of the procedure:

Preparation and loading:

Liquid or frozen product: The product can be introduced into the freeze-dryer in two primary forms:

• Liquid form: The product is poured into trays as a liquid and then frozen within the trays.

• Frozen form: The product is pre-frozen (e.g., as pellets or blocks) and then placed directly onto the trays.

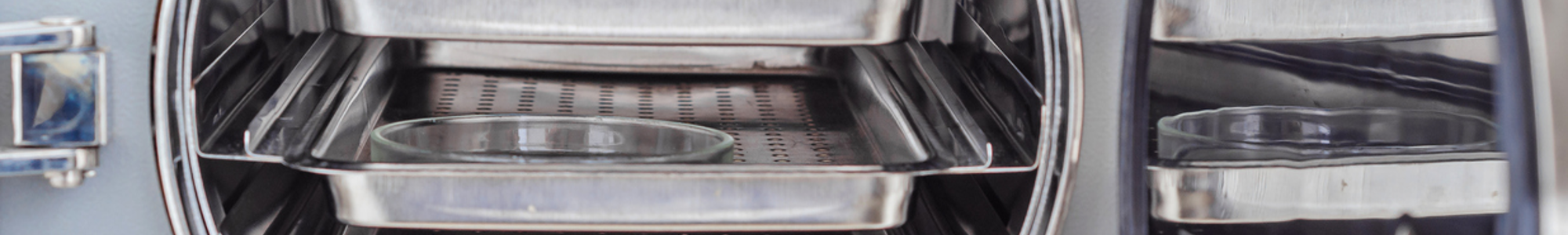

• Tray configuration: Trays are designed to maximize surface area, facilitating efficient heat transfer and uniform drying.

Freezing phase

• Primary freezing: The product is frozen to a temperature below its eutectic point, ensuring that all freezable water is converted to ice. This phase is critical for maintaining the structural integrity of the product during drying.

• Controlled cooling: Precise control of cooling rates helps prevent the formation of large ice crystals, which can damage the product’s cellular structure.

Primary drying (Sublimation)

• Vacuum application: A vacuum is applied to the chamber, lowering the pressure to facilitate sublimation.

• Heat transfer: Heat is applied to the trays, causing the ice to sublimate directly into vapor.The heat transfer modes; conduction, convection, and radiation, play crucial roles in the freeze drying process:

• Conduction: Heat is transferred from the shelves to the trays and then to the product.

• Convection: In some systems, gas flow can enhance heat transfer, though this is less common in vacuum conditions.

• Radiation: Thermal radiation from the shelves and chamber walls contributes to the overall heat input.

• Moisture removal: The vapor is removed from the chamber by a condenser, which captures the moisture, preventing it from re-entering the product.

Secondary drying (Desorption)

• Residual moisture removal: After sublimation, residual moisture bound to the product is removed by raising the temperature slightly. This step ensures the product reaches the desired low moisture content, enhancing stability and shelf life.

• Controlled heating: Careful control of temperature and pressure during this phase prevents overheating and product degradation.

Unloading and Packaging

• Final product handling: Once the drying process is complete, the product is carefully removed from the trays. It is then packaged in a controlled environment to prevent moisture absorption and contamination.

• Quality control: The final product undergoes rigorous testing to ensure it meets the required specifications for moisture content, stability, and efficacy.

Advantages of bulk freeze drying

Scalability: Bulk freeze drying is ideal for large-scale production, accommodating significant quantities of material.

Cost efficiency: Processing large batches reduces per-unit costs, making it economically viable for high volume needs.

Flexibility: Suitable for a wide range of products, from pharmaceuticals to food items, in various forms (liquid, pellets, etc.).
